react-spa-jwt-authentication-boilerplate

A JWT authentication boilerplate for React SPAs with microservices and isolated frontend and backends

View project on GitHub

react-spa-jwt-authentication-boilerplate

This project aims to give an opensource lean boilerplate for email based microservice authentication that can be used by both web applications as well as native applications.

Ideally, we suggest both the web apps and native apps to interact with the backend through APIs after the login. (The project aims especially SPAs.)

Principles

Following should apply for the whole structure:

  • Lean
  • Authentication is done with JWT - Jason Web Tokens
  • Stateless, API driven
  • Microsevices
  • Scalable
  • Opensource
  • SQL’s should define the “model”
  • Because of its microservices and API driven nature “view” are delegeted to SPA or native applications (they also exist in frontend and frontend-native folders)
  • It must be easily cloned and when executed it should run (*)

(*) This project uses MySQL. Because of the [license model of MySQL] (https://www.mysql.com/about/legal/licensing/oem/), if you use this boilerplate, do not distribute MySQL binaries.

Prerequisites

  • Ubuntu is prefered
  • MySQL is chosen for user database

Frontend

  • Source code in ./frontend directory
  • Web App is generated by create-react-app to have all wiring ready with babel and webpack
  • SPA - Single Page Application approach is used
  • Redux is used to track login state
  • The common library Material UI which implements Google’s material design principles, is used for Material Design UI components

Frontend Native

  • Source code in ./frontend-native directory
  • Native App is generated by Expo to have all wiring ready and a test suite that does not require XCode, hence Mac ownership
  • Redux is used to track login state
  • The common library NativeBase is used for both iOS and Android UI components

Backend

  • Source code in ./backend/src directory
  • Based on Express
  • All authentication is with JWT (the node library jsonwebtoken is used)
  • Passwords are hashed by bcrypt
  • Uses [MySQL] (https://www.mysql.com/) as the user repository database (*)
  • For email uses nodemailer

(*) It is completely OK if you swap the MySQL with other databases. The database scripts are in pure SQL so it should, in theory, be fine to use with other relateional database servers.

Setup

  1. If you are not using MySQL, you’ll need to modify database connections in the code. That is why we suggest you to setup MySQL. For a clean guide to set up MySQL for Ubuntu yo can refer here.

  2. Set environment parameters for mail and relational database. If you choose to use MySQL and linux adding following lines to ~/.bashrc file should be sufficient. (Please update username, password, etc correctly.)

############# react-spa-jwt-authentication-boilerplate #############
# JWT Secret
export JWT_SECRET="your-secret-do-not-forget-to-change"
# Mail Transporter Parameters
export GENERIC_MAIL_SERVICE="yourmailtransporter" #Example: "gmail"
export GENERIC_MAIL_USER="yourusername" #Example: "name.surname@gmail.com"
export GENERIC_MAIL_PASSWORD="yourpassword" #Example: "Password1:-)"
# MySQL Parameters
export MYSQL_HOST="yourhost"  #Example "localhost"
export MYSQL_USER="yourdbuser"  #Example "root"
export MYSQL_PASSWORD="yourdbpassword"  #Example "tiger"
############# react-spa-jwt-authentication-boilerplate #############

If you are planning to use your gmail account as your mailer, you need to make the “Less secure app access” on from your gmail settings:

Google Setting - Less secure app access - Screenshot by Jan 2019

  1. Download codes
git clone https://github.com/MehmetKaplan/react-spa-jwt-authentication-boilerplate my-authentication-app
  1. Go to database script folder
cd my-authentication-app/backend/database_scripts

Skip below 2 steps, if you have another relational database system. But assure to generate a schema named AuthUsersDB and under that schema generate the objects stated in Generate_Objects.sql file.

  1. Generate the schema. (You’ll need to provide root password).
mysql -u root -p < Generate_Database.sql
  1. Generate the objects. (You’ll need to provide root password).
mysql -u root -p < Generate_Objects.sql
  1. Install modules for backend. (There may be warnings but assure there are no errors.)
    cd [YOUR-ROOT-DIRECTORY]/backend
yarn install
mkdir dist
  2. Install modules for native appliation. (There may be warnings but assure there are no errors.)
    cd [YOUR-ROOT-DIRECTORY]/frontend-native
yarn install
  3. Install modules for web appliation. (There may be warnings but assure there are no errors.)
    cd [YOUR-ROOT-DIRECTORY]/frontend
yarn install
  4. Update the following configuration parameter both in ./frontend/src/common-logic/config.js and ./frontend-native/common-logic/config.js. Please be aware that for expo application, since it runs in your phone, the most appropriate way would be to connect your computer to internet thorugh your phone via cable so that you have a stable connection. And use the IP of your computer instead of localhost in below configuration.
mainServerBaseURL: "http" + "://" + "localhost" + ":" + "8000",

Run In Your Local Ubuntu

Frontend (for web)

In seperate 2 terminals run following.

Backend

From root of project:

cd ./backend
yarn start

Frontend

From root of project:

cd ./frontend
yarn start

Frontend Native

In seperate 2 terminals run following sequentially (since start up sucks too much CPU power).

Backend

From root of project:

cd ./backend
yarn start

Frontend Native

From root of project:

cd ./frontend-native
yarn start

Now you should see a QR code within the termical (cool! :-) ) which you may scan with your phone. And your phone will suggest you to open with “expo application”. If that application is not loaded you should first install it.

When opening the native application through expo client, it takes a few minutes, be patient and reload a few times until you see javascript bundling info in the terminal. Something like:

Building JavaScript bundle [===     ] XX%

Guidelines To Use for Your Own Project

After you cloned the whole structure with following principles you can use the entire repo as your base and build your own single page web and react native applications on top of it.

Frontend Native

  • frontend-native/common-logic keeps the shared logic with web application. It must be same as frontend/common-logic. :-)
    • Components are not placed in any common area since components should deal only with presenting the data and it should be web / native specific.
    • On the other hand logic of how the data is retrieved, manipulated and posted should be exactly the same for both web and native applications.
  • Start with command yarn start which runs Expo application. Rest is same as you are working in an Expo application.
  • The layout of pages are components and you can find them under the frontend-native/components folder. Modifying them you can change the view of your project however you like.
  • The redux store is in the frontend-native/common-logic/redux-store.js file. You can update this file and use it similarly in your project.

Frontend

  • frontend/common-logic keeps the shared logic with web application. It must be same as frontend-native/common-logic. :-)
  • Start with command yarn start which runs a ReactJS application which is generated by create-react-app tool.
  • The layout of pages are components and you can find them under the frontend/components folder. Modifying them you can change the view of your project however you like.
  • The redux store is in the frontend/common-logic/redux-store.js file. You can update this file and use it similarly in your project.

Backend

  • Start with command yarn start which runs Express application framework. Rest is same as you are working in an Express web application.
    • Middleware (the JS code that connects requests with responses) are not placed in a directory structure since the logic is pretty straight forward.
  • All behaviour configurations should be placed under backend/src/config.js file.
  • Database selects are in backend/src/sqls.js so that from a single point the persistent layer interaction can be analysed.
  • The email communication with users is governed by backend/src/mailer.js.
  • The fraudelent requests are to be detected by backend/src/lock_handler.js.
  • backend/database_scripts/database_action_mysql.js governs communication with MySQL database with 2 simple wrapper functions. By default they are left as logging the sql statements that they are executing.
  • backend/src/generic_library.js keeps a few helper javascript function.
  • backend/src/server.js, as a standard Express application, keeps track of routes, all of which are API requests, except the web application (the frontend application)
  • backend/src/validations.js is resposible of the request parameters’ validations.

Flows

Here we’ll try to look at the infrastructure from different angles

  • Roles
  • Scenarios
    • The flows in frontend
    • The process flows
  • React Component (Class) Flows

Roles

  • User
  • Browser or Native Application (their interaction with backend should be exactly the same)
  • Request Handler
  • Database
  • Mailer
  • Lock Handler
  • Validations

Scenarios

Sign Up

Frontend Experience

Sign Up Flowchart

Process

Sign Up Sequence Diagram

New Logins

Frontend Experience

New Login Flowchart

Process

New Login Sequence Diagram

Remember Me Login

Frontend Experience

Remember Me Flowchart

Process

Remember Me Sequence Diagram

Forgot Password

Frontend Experience

Forgot Password Flowchart

Process

Forgot Password Sequence Diagram

Change Password

Frontend Experience

Change Password Flowchart

Process

Change Password Sequence Diagram

Change Email

Frontend Experience

Update Email Flowchart

Process

Update Email Sequence Diagram

Update User Data

Frontend Experience

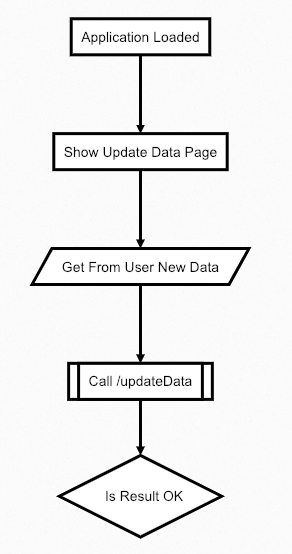

Update Data Flowchart

Process

Update Data Sequence Diagram

Social Login

Social Login Sequence Diagram

React Component (Class) Flows

The native and web frontend components are very similar. The reasons that they are not unified are:

  1. There are no consistent UI libraries that work similar for native and web. We use native-base in native and material ui in web frontend. They are the most used frameworks for their areas.
  2. Native application is generated by Expo and web application is generated by create-react-app. The two tools have slight differences in their navigation approaches.

We tried to unify these navigations as much as possible.

Below is the comparison of component flows in native and web application. As you see the difference is minimal.

Component Flows

Social Logins

Facebook LogIn

For Facebook login, as a standard approach, you need to obtain the Application ID and and configure it in the ./frontend-native/common-logic/config.js.

This id should propagate to ./frontend/src/common-logic/config.js when the copy_common-logic.sh is run under ./frontend-native/common-logic/.

Frontend-Native

  • Configure "facebookScheme": "fbYOUR-FB-APP-ID", parameter in the ./frontend-native/app.json file. Be careful that, there is fb in front of your application id.
  • Configure facebookAppId and facebookDisplayName keys ny obtaining the values from https://docs.expo.io/versions/latest/sdk/facebook/ in section 4.

Also you’ll need to follow instructions in https://docs.expo.io/versions/latest/sdk/facebook/.

Things To Do Before Going to Production

Backend

  • Go through environment variables and carry them
  • Go through the config parameters
  • Build the backend server and deploy the application
  • Start up the application in production server

Build standalone applications

Follow the instructions in https://docs.expo.io/versions/latest/distribution/building-standalone-apps/#building-standalone-apps

Facebook Login

  • Have a public privcy policy URL and configure it in Facebook developers then change your Facebook application settings to production.
  • For iOS, get your apps Bundle ID from iOS Developer Console and configure it in the Facebook developer page (during devlopment we have been using Expo’s bundle id)
  • For Android build your application, then go as stated in https://docs.expo.io/versions/latest/sdk/facebook/

Android vs iOS

  • WebView must be tested on Android since it has differentiated code.

Change Log

16.03.2019: For frontend-native background task runner added. This is a WebView class which executes delegated tasks (fetch as primary goal) at the background and gives back the result. The aim is to avoid the impact on user experience because of single-thread nature of the JavaScript. As of now Expo SDK32 has a bug that prevents reading data from the WebView. It is expected to be solved in SDK33.

31.03.2019: Implemented web worker structure for same purpose in frontend web side. 07.04.2019: Social Login Completed

Licenses

The license is MIT and full text here.

Backend used modules

  • express license here
  • jsonwebtoken license here
  • bcrypt license here
  • mysql license here
  • nodemailer license here
  • babel license here
  • cors license here
  • date-and-time license here
  • rimraf license here
  • morgan license here
  • node-fetch license here

Frontend used modules

  • react license here
  • material-ui license here
  • react-scripts license here
  • redux license here
  • moment license here
  • react-google-login license here
  • moment react-facebook-login here
  • react-device-detect license here

Frontend Native used modules

  • react license here
  • react-native license here
  • expo license here
  • native-base license here
  • react-navigation license here
  • react-redux license here
  • redux license here
  • babel license here
  • moment license here
  • react-native-webview license here
